PRODUCT · 3D PRINTING · ULTIMAKER SECURE

UltiMaker Secure

Perangkat Keras Kelas Industri yang Dioptimalkan untuk Produksi Berkecepatan Tinggi.

Dirancang untuk lingkungan dengan standar keamanan tinggi, UltiMaker Secure Line menawarkan printer 3D profesional buatan Belanda yang telah bersertifikasi NATO. Tersedia dalam pilihan S6 Secure dan S8 Secure.

NATO-Aligned Security
Made in the Netherlands
Mission-Ready Reliability
Defense-Grade Data Security

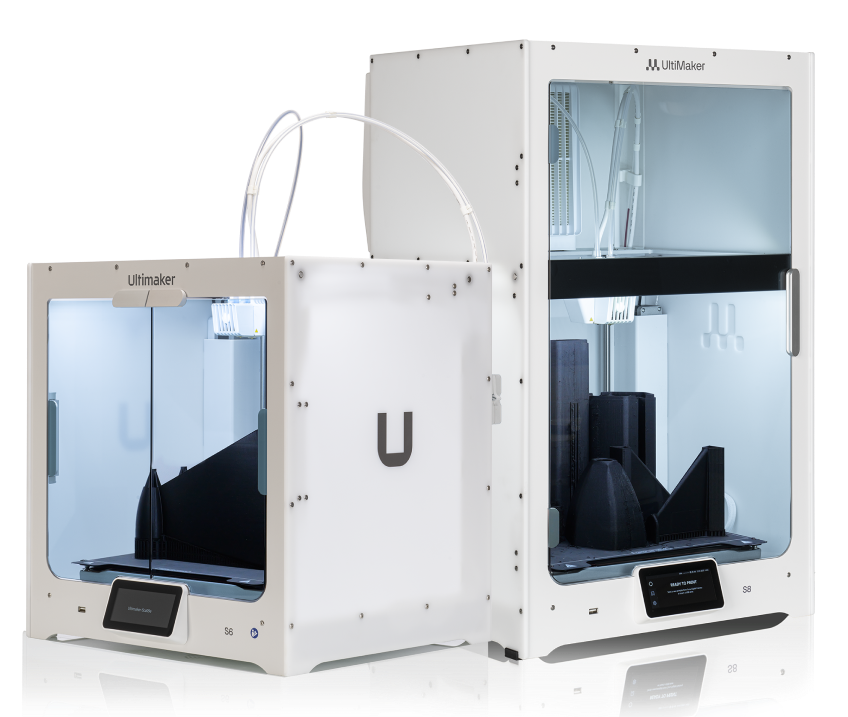

UltiMaker Secure
UltiMaker Secure Series
Keunggulan S6 & S8 Secure

Manufaktur Taktis dengan Keamanan NATO

Air-gapped.
Defense-ready.

24 Month standard
warranty included.

UltiMaker Cheetah
motion planner

Click and print with
300+ materials

Air-gapped.
Defense-ready.

Security Without Compromise

Air-gapped operation with USB-only workflows. No Wi-Fi, no cameras, no unverified devices, eliminating vulnerabilities like espionage, data theft, or Trojan-horse printers.

The system helps shield your intellectual property from espionage and data breaches.

Total Data
Control

UltiMaker Secure - Total Data Control

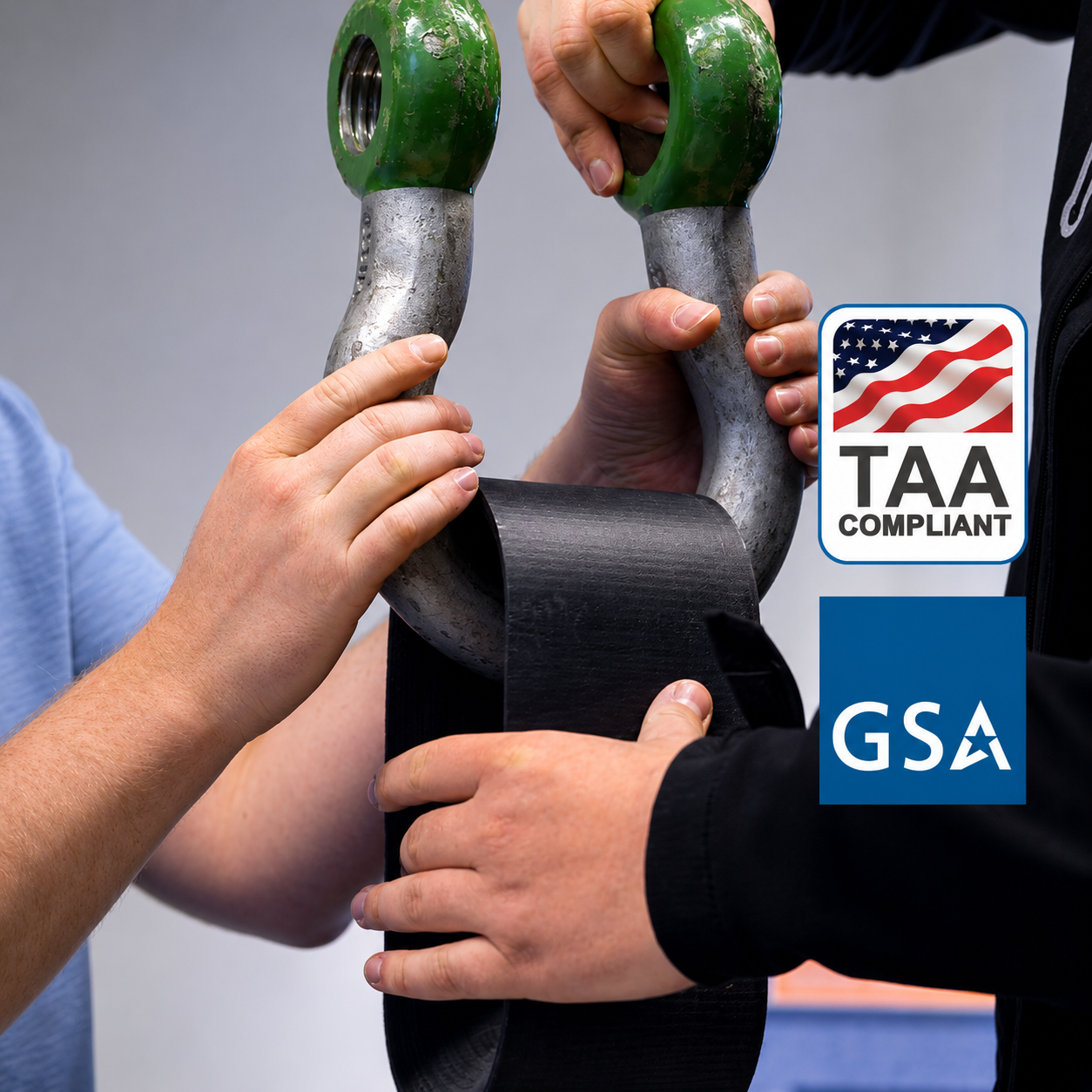

Made in EU.
Trusted by NATO.

TAA Compliant, Available on GSA

Our commitment to security begins with our European-based design and manufacturing. By adhering to strict EU and US regulations, including GDPR and export compliance, we deliver a trusted, verifiable solution that guarantees the integrity of your data and the reliability of your supply chain.

Ready for government acquisition with full

TAA

compliance.

UltiMaker Secure - Total Data Control

Trusted by the World's Top Designers and Engineers

Detail Fitur

Fitur Khusus untuk Sektor Pertahanan

Setiap komponen dikembangkan untuk memenuhi tuntutan lingkungan pertahanan dan keamanan tinggi.

Unprecedented Reliability & 24-Month Warranty

Unprecedented Reliability & 24-Month Warranty

Starting with a 2-year service plan; optional extensions up to 5 years; maintenance parts available for 5-7 years.

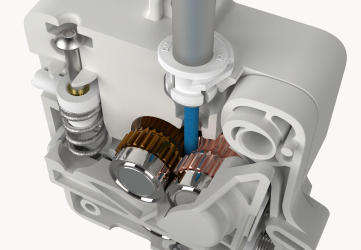

Updated feeder system

Updated Feeder System

New hardened feeder module design inherited from Factor 4 for improved grip and better material control at high speeds.

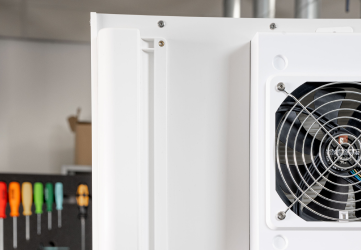

Integrated EPA filter on S8, optional on S6

Integrated EPA Filter on S8, Optional on S6

Independently tested to remove up to 95% of ultrafine particles to increase air quality peace of mind. The fully enclosed build chamber also boosts print quality.

Samples of Key Applications in Defense

Antenna holder FRISC

Antenna Holder FRISC

The base fixing contruction of the antenna of a high speed interference boat, previously made from aluminium and now replaced with 3D printed parts.

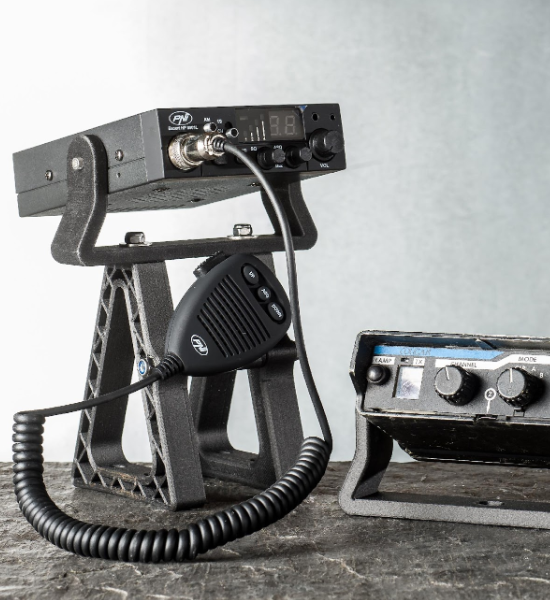

GPS / Radio bracket

GPS / Radio Bracket

This bracket fixes a radio communication to vehicles like motorcycles and quads during missions. The fixture can be adapted for different communication equipments and features a slot for the speaker microphone.

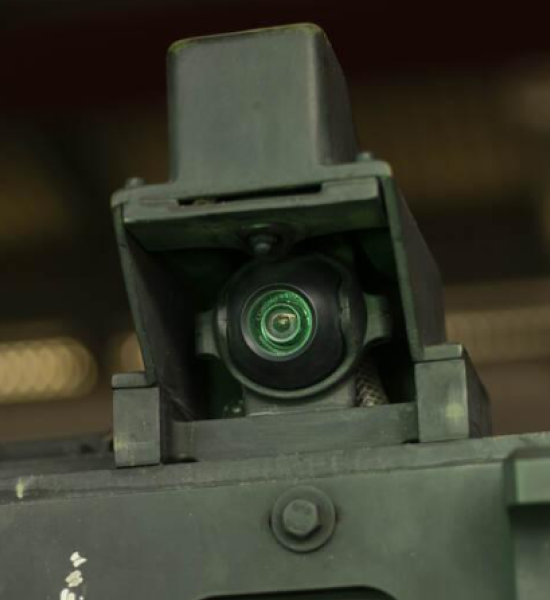

Fennek rear camera bracket

Fennek Rear Camera Bracket

This 3D printed camera bracket highlights how additive manufacturing can transform maintenance and repair in mission-critical defense applications.

On-Demand Spare Parts

The Navy's 3D
Printing Solution

Facing significant logistical challenges and high costs for spare parts, the Royal Netherlands Navy has equipped its fleet with UltiMaker 3D printers. This allows them to produce necessary components on-demand directly on the ships, which cuts down on wait times, reduces the need for large inventories, and ensures operational readiness anywhere in the world.

Royal Netherlands Navy - The Navy's 3D Printing Solution
On-Demand Spare Parts

Lifting a 12 Ton Tank

To showcase the strength of advanced 3D printing, UltiMaker collaborated with the Royal Netherlands Navy and Covestro to design and produce a carbon fiber composite link. The resulting 2-kilogram part successfully lifted a 12-tonne armored vehicle, proving that additive manufacturing can create reliable, load-bearing parts for the most demanding applications.

Royal Netherlands Navy - The Navy's 3D Printing Solution
Speeding up maintenance with 3D printed tools

Netherlands
Air Force

To overcome the challenge of sourcing expensive and slow-to-acquire custom tools, the Royal Netherlands Air Force integrated UltiMaker 3D printers into their maintenance workshops. This allows their engineers to affordably produce custom tools, fixtures, and prototypes in-house within hours, significantly speeding up maintenance and improving efficiency.

Royal Netherlands Navy - The Navy's 3D Printing Solution

Featured accessories and materials

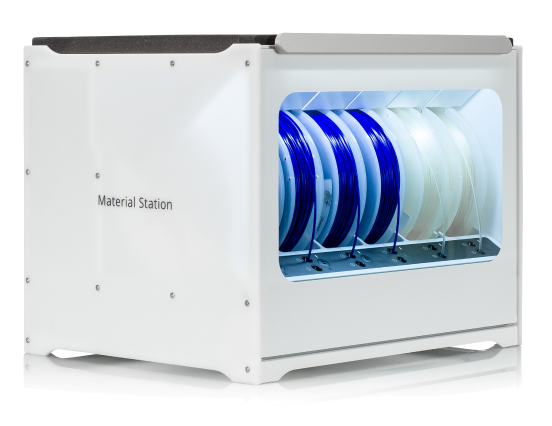

UltiMaker Material Station

The UltiMaker Material Station seamlessly integrates with the S6 and S8 3D printers, holding up to six spools of material, automatically detecting materials via NFC, and switching between them as needed.

UltiMaker Material Station

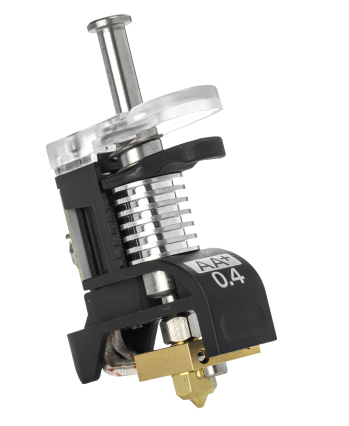

High Flow Print Cores

The new AA+ and CC+ print cores, exclusive to the UltiMaker S6 and S8, have a new quad-chamber design. Allowing for 2.5x more flow and also help regulate the pressure in the print head for cleaner prints.

High flow print cores

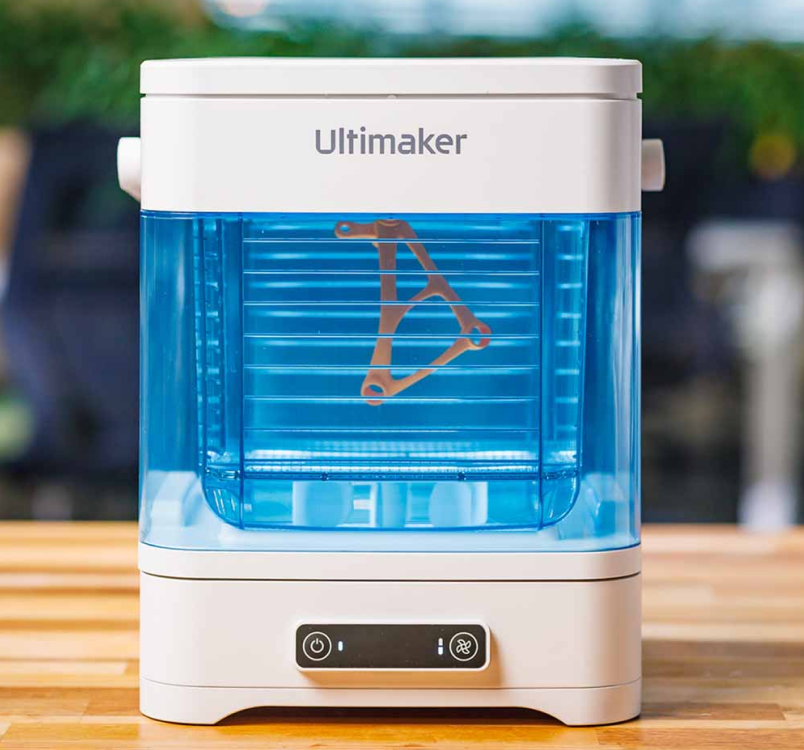

UltiMaker PVA Removal Station

Simple post-processing. Faster parts

UltiMaker PVA Removal Station

The S6 and S8 Secure printers work with 301+ materials including the following:

Nylon CF Slide (new)

Nylon CF Slide (new)

Print CoreCC, CC+, HT
Coefficient of friction0.2
HDT B (Annealed)180°C
Impact strength24 kJ/m2

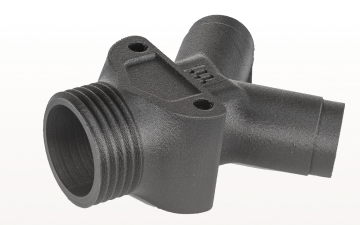

PET CF

PET CF

Print CoreCC
Hardness76 Shore D
Thermal resistance76 °C
Impact strength8.6 kJ/m²
Tough PLA

Tough PLA

Print CoreAA
Hardness80 Shore D
Thermal resistance58 °C
Impact strength9 kJ/m²
PLA

PLA

Print CoreAA
Hardness84 Shore D
Thermal resistance59 °C
Impact strength4 kJ/m²
PETG

PETG

Print coreAA
Hardness76 Shore D
Thermal resistance76 °C
Impact strength8 kJ/m²
ABS

ABS

Print CoreAA
Hardness76 Shore D
Thermal resistance87 °C
Impact strength14 kJ/m²
CPE

CPE

Print CoreAA
Hardness76 Shore D
Thermal resistance77 °C
Impact strength6 kJ/m²
CPE+

CPE+

Print CoreAA
Hardness77 Shore D
Thermal resistance100 °C
Impact strength37 kJ/m²
Nylon

Nylon

Print CoreAA
Hardness81 Shore D
Thermal resistance89 °C
Impact strength14 kJ/m³
PC

PC

Print CoreAA
Hardness81 Shore D
Thermal resistance111 °C
Impact strength12 kJ/m²
TPU 95A

TPU 95A

Print CoreAA
Hardness48 Shore D
Thermal resistance116 °C
Impact strength36 kJ/m²
PP

PP

Print CoreAA
Hardness42 Shore D
Thermal resistance99 °C
Impact strength49 kJ/m²

S8 Secure Specifications

Dimensions
Build volume
330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
Assembled dimensions
W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches)
Printing technology
Fused Deposition Modeling (FDM)
Compatible filament diameter
2.85 mm
Weight
30 kg (66.1 lbs)
Shipping weight
39 kg (85.9 lbs)
Maximum power output
500 W
Dimensional accuracy
± 0.15 mm ± 0.15% feature nominal length*
Extrusion flow
Up to 35 mm3/s
XY speed, acceleration, jerk
Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3
Printer properties
Layer resolution
60 – 400 microns (depending on the print core nozzle size and print profile)
XYZ resolution
6.9, 6.9, 2.5 micron
Feeder type
Dual-geared feeder, reinforced for composite materials
Display
4.7-inch (11.9 cm) color touchscreen
Print core replacement
Swappable print cores
Print head
Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection.
Nozzle diameters
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
XY speed, acceleration, jerk
Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3
Extrusion flow
Up to 35 mm3/s
System on module
ARM cortex quadcore at 1.8 GHz
Real-time controller
600 MHz Arm-cortex M7
Operation
parameters
Filter technology
Replaceable EPA filter
Air extraction rate
1 - 50 m³/h (35 m³/h nominal rate for most materials at 23 °C)
Nozzle temperature
Up to 340°C (644°F)
Nozzle heat-up time
< 2 minutes
Operating sound
< 50 dBA
Build plate leveling
Advanced active leveling with more accurate inductive sensors
Build plate
PEI-coated flexible steel build plate
Build plate heat-up time
< 5 minutes (from 20 to 60 °C)
Operating ambient temperature
15 - 32 °C (59 - 90 °F)
Non-operating temperature
0 - 32 °C (32 - 90 °F)
Ecosystem
Supplied free software
UltiMaker Cura – print preparation software. UltiMaker Digital Factory – All-in-one cloud-based print, printer and user management software
Supported OS
MacOS, Windows, and Linux
Plugin integration
SolidWorks, Siemens NX, Autodesk Inventor
Supported file types
UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG. Printable formats: G, GCODE, GCODE.gz, UFP
Safety and
compliance
Certification
CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use

S6 Secure Specifications

Dimensions
Build volume
330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
Assembled dimensions
W 495 x D 585 x H 780 mm (W 19.5 x D 23 x H 30.7 inches)
Print technology
Fused Deposition Modeling (FDM)
Compatible filament diameter
2.85 mm
Weight
22 kg (48.5 lbs)
Shipping weight
30 kg (66.1 lbs)
Maximum power output
500 W
Dimensional accuracy
± 0.15 mm ± 0.15% feature nominal length*
Printer properties
Layer resolution
60 – 400 microns (depending on the print core nozzle size and print profile)
XYZ resolution
± 0.15 mm ± 0.15% feature nominal length*
Feeder type
Dual-geared feeder, reinforced for composite materials
Display
4.7-inch (11.9 cm) color touchscreen
Print core replacement
Swappable print cores
Print head
Dual extrusion print head with an auto-nozzle lifting system, swappable print cores.
Nozzle diameters
0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm
XY speed, acceleration, jerk
Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3
Extrusion flow
Up to 35 mm3/s
System on module
ARM cortex quadcore at 1.8 GHz
Real-time controller
600 MHz Arm-cortex M7
Operation
parameters
Nozzle temperature
Up to 340°C (572°F) supported with the CC+ print cores
Nozzle heat-up time
< 2 minutes
Operating sound
< 51 dBA
Build plate leveling
Advanced active leveling
Build plate
Steel flex plate
Build plate heat-up time
< 5 minutes (from 20 to 60 °C)
Operating ambient temperature
15 - 32 °C (59 - 90 °F)
Non-operating temperature
0 - 32 °C (32 - 90 °F)
Ecosystem
Supplied free software
UltiMaker Cura – print preparation software. UltiMaker Digital Factory – printer management software
Supported OS
MacOS, Windows, and Linux
Plugin integration
SolidWorks, Siemens NX, Autodesk Inventor
Supported file types
UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG. Printable formats: G, GCODE, GCODE.gz, UFP
Safety and
compliance
Certification
CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use
