PRODUCT · 3D PRINTING · UltiMaker Method

UltiMaker Method

Printer 3D yang mudah digunakan dengan harga terjangkau.

Hasilkan komponen dan prototipe presisi menggunakan material kelas industri melalui solusi yang praktis dan efisien.

Industrial-Grade Precision
Heated Chamber for ABS Printing
Office-Friendly Design
Reliable Dimensional Accuracy
Ultimaker Method
Fitur Unggulan

Langsung siap pakai tanpa pengaturan rumit.

Ruang Cetak Berpemanas Aktif
[65° C]

Pencetakan 3D
Ekstrusi Ganda

Buildplate
Fleksibel

Sistem Regulasi
Termal VECT.

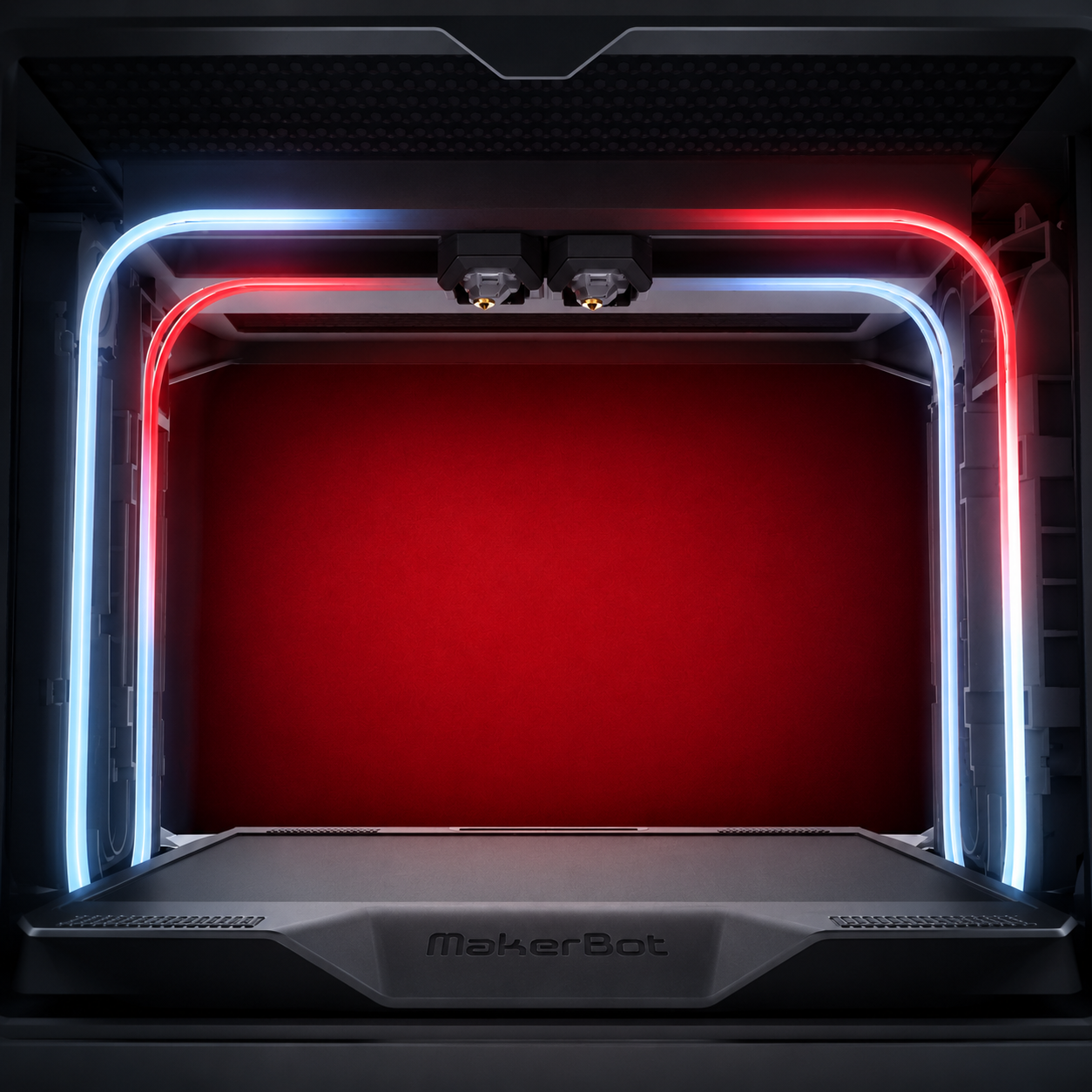

Ruang Cetak yang Dipanaskan Secara Aktif

Teknologi VECT™ (Variable Environmental Controlled Temperature) yang dipatenkan memanaskan dan mengontrol lingkungan cetak secara merata, menghasilkan komponen yang 2x lebih kuat pada sumbu-Z dan 2x lebih akurat secara menyeluruh.

Ruang cetak dipanaskan aktif
Suhu maksimum:

65° C

Regulasi Termal secara merata memanaskan dan mengontrol lingkungan cetak, menghasilkan komponen yang 2x lebih kuat pada sumbu-Z, dan 2x lebih akurat secara menyeluruh.

UltiMaker Method - Sistem Regulasi Termal VECT

Cetak Komponen Kuat
Pengganti Metal yang Tahan Panas.

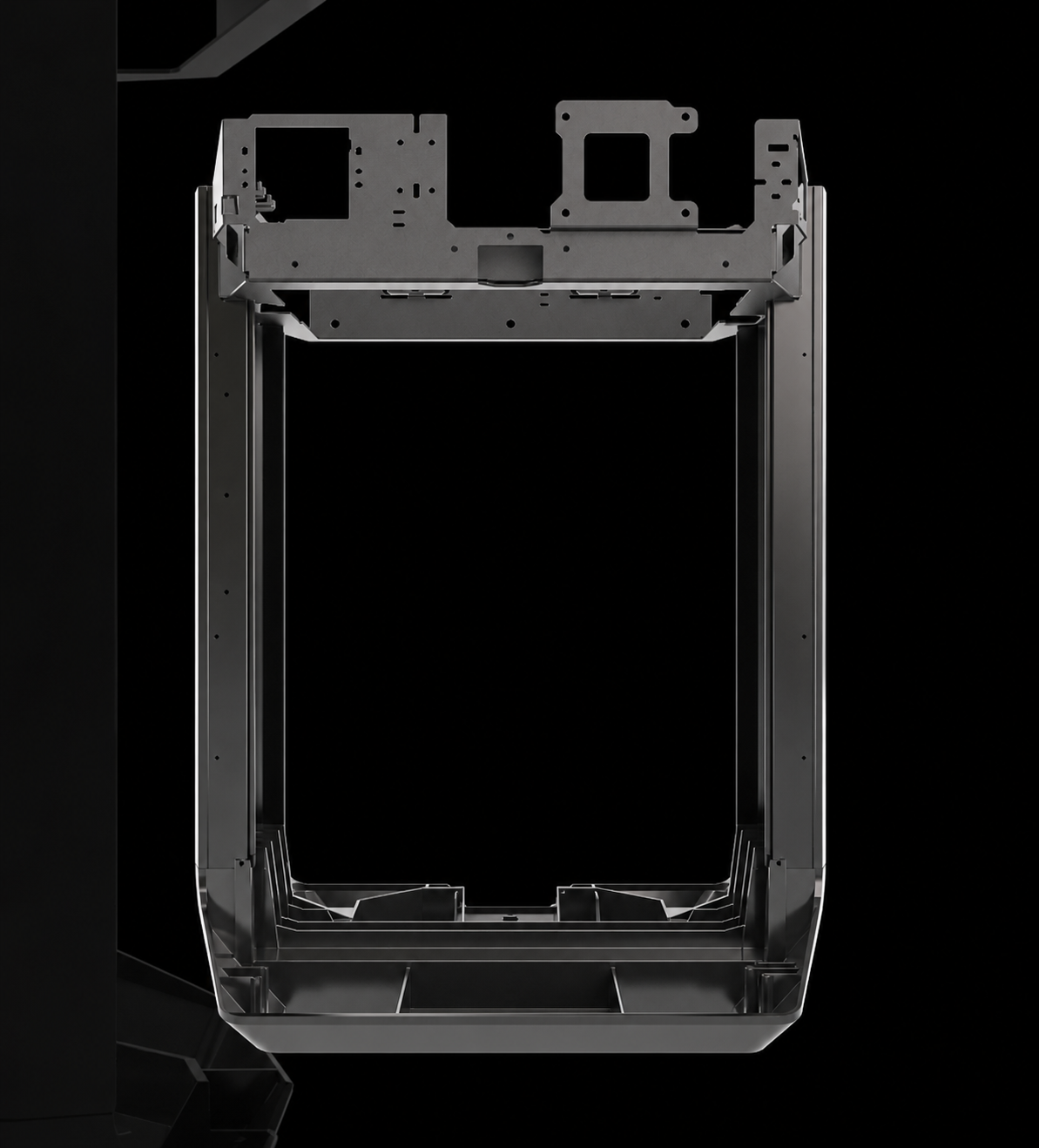

Rangka Metal yang Kaku

Rangka logam yang dioptimalkan secara struktural membentang di sepanjang body untuk mengurangi lenturan. Semakin sedikit lenturan berarti hasil cetak yang lebih konsisten dengan akurasi komponen yang lebih baik dan kegagalan cetak yang lebih sedikit.

Akurasi Dimensi

+/- 0.2mm

atau +/-.002mm per mm jarak tempuh*
UltiMaker Method X Carbon Fiber - Rangka Metal

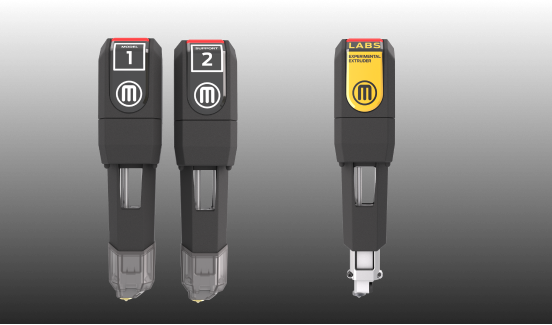

Direct drive extruders

Direct Drive Extruders

Ganti antar kelompok material dengan cepat, mencegah kontaminasi silang.

5 Inch Capacitive Touchscreen

Layar Sentuh Kapasitif 5"

Akses pengaturan step-by-step yang intuitif serta kontrol dan informasi real-time untuk setiap pekerjaan cetak Anda.

Spesifikasi

Highlight
specifications
Heated chamber max temperature
65° C
Dual extruder build volume
W 152, D 190, H 196 mm (W 6, D 7.5, H 7.75 inches)
Touchscreen display
5" (12.7 cm) full-color capacitive touchscreen
Dimensions
Build volume (dual material)
W 152, D 190, H 196 mm (W 6, D 7.5, H 7.75 inches)
Build volume (single material)
W 190, D 190, H 196 mm (W 7.5, D 7.5, H 7.75 inches)
Assembled dimensions
W 43.7, D 41.3, H 64.9 H cm (W 17.2, D 16.3, H 25.6 in)
Print technology
Fused Deposition Modeling (FDM)
Compatible filament diameter
1.75 mm
Weight
29.5 kg (65 lbs)
Maximum power output
400 W
Printer properties
Layer resolution
0.4 mm nozzle: 400 - 20 micron
Display
5" (12.7 cm) full-color capacitive touchscreen
Extruder replacement
Swappable performance extruders
Print head
Dual-extrusion print head with swappable extruders
Nozzle diameter
0.4 mm
Operation
parameters
Maximum heated chamber temperature
65° C
Maximum extruder temperature
300° C
Operating sound
57.1 +/- 3 dB
Build plate
Flexible build plate
Ecosystem
Supplied free software
UltiMaker CloudPrint
Supported OS
MacOS, Windows
File transfer
Wi-Fi, Ethernet, USB

Tertarik dengan Solusi 3D Printing?

Konsultasikan kebutuhan Anda dan jadwalkan demo langsung bersama tim ahli kami.
